HEKO EC133mm 230VAC Backword Curved Centrifugal Blower Fan

Product Description

Fan model: HB133-072E230H

Rated Voltage: 230VAC

Rated Current: 0.35A

Rated Power: 45W

Rated Speed: 4480RPM

Air Flow: 470M3/H

HEKO 225mm EC Backward Curved Centrifugal Fan with 72 motor (1)

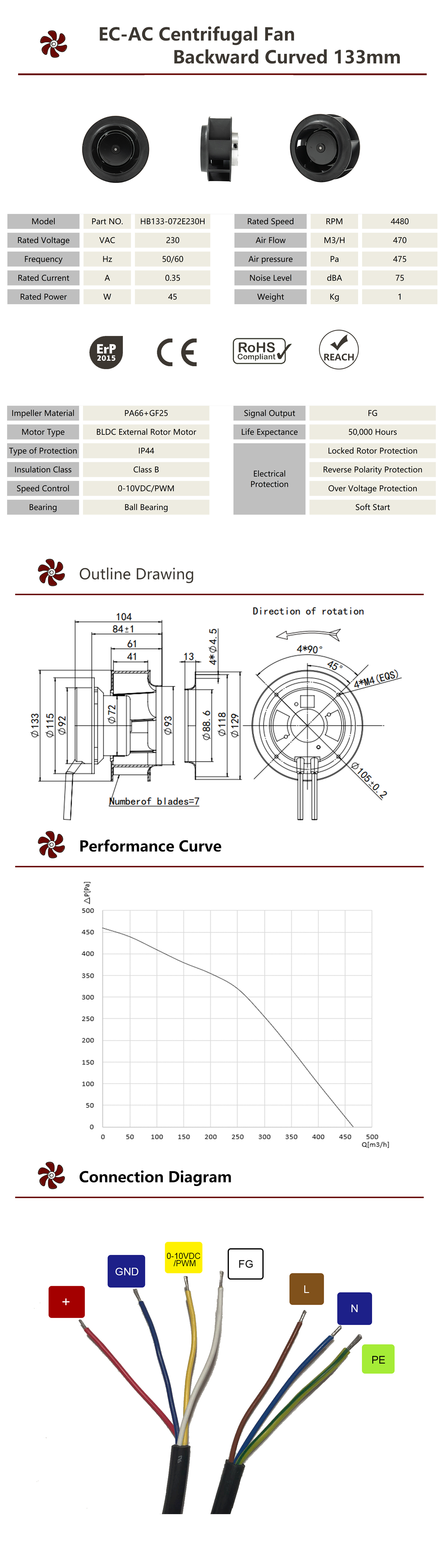

HEKO 133mm EC Backward Curved Centrifugal Fan (2)

Product Characteristics

Fan Model	HB133-072E230H
Brand Name	HEKO
Impeller Material	PA66+GF25
Motor Type	BLDC External Rotor Motor
Type of Protection	IP44
Insulation Class	Class B
Speed Control	0-10VDC/PWM
Bearing	Ball Bearing
Signal Output	FG
Life Expectance	50,000 Hours
Electrical Protection	Locked Rotor Protection
	Reverse Polarity Protection
	Over Voltage Protection
	Soft Start
