DC axial fans are a vital component in modern thermal management systems. They're commonly used in electronics, automotive systems, telecommunications, and industrial control panels. But a question that often surfaces among hobbyists and engineers alike is: Can I use a USB port to power a DC axial fan? This article delves deeply into this question, exploring the technical feasibility, risks, use-case scenarios, and alternative solutions—all based on the characteristics of DC axial fans such as those found at Hekofan's DC Axial Fans category.

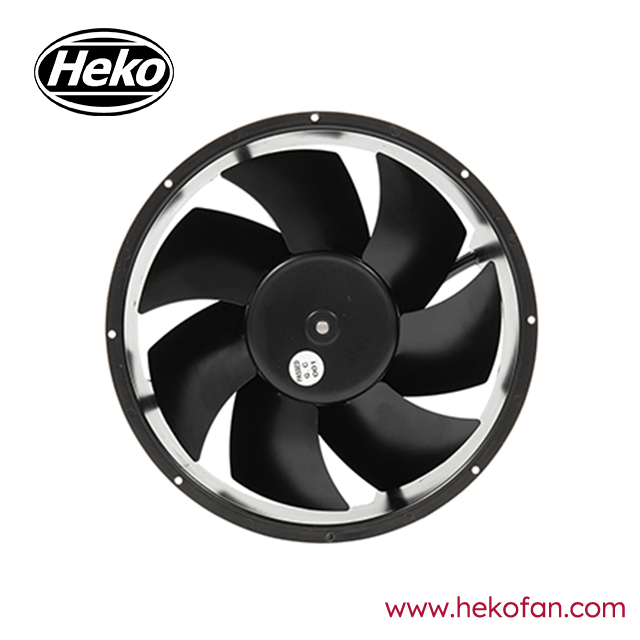

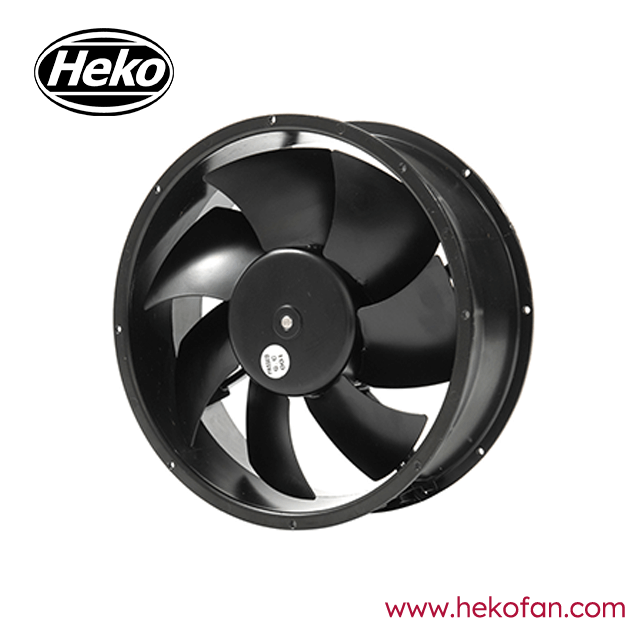

DC axial fans operate by drawing air along the axis of the fan and expelling it in the same direction. The term “axial” comes from this straight-line airflow. They are known for their high airflow efficiency, compact structure, and the ability to be precisely controlled with variable voltages.
These fans typically come with ratings of 5V, 12V, or 24V, and are used where precise cooling and compact form factors are necessary. Some DC axial fans are even designed with smart features like PWM speed control, tachometer outputs, and thermal sensors. Before diving into USB compatibility, it's crucial to understand the voltage and current requirements of the fan you're planning to power.
USB ports are available in several formats:
| USB Type | Voltage (V) | Max Current (A) | Max Power (W) |
|---|---|---|---|
| USB 2.0 | 5V | 0.5A | 2.5W |
| USB 3.0/3.1 | 5V | 0.9A | 4.5W |
| USB-C (PD) | 5V–20V | Up to 5A | Up to 100W |
Most standard USB-A ports (USB 2.0 and 3.0) can only deliver 5V and under 1A of current, making them potentially suitable only for 5V DC axial fans with very low power consumption.
If you’re considering using a USB port to power a DC axial fan, voltage compatibility is the first checkpoint. For instance, plugging a 12V fan into a 5V USB port will either result in the fan not spinning at all or spinning extremely slowly, which could overheat your equipment. On the flip side, powering a 5V fan from a USB 2.0 or 3.0 port is technically feasible only if the current requirement is under 500–900mA.
Here's an example of compatibility:
| DC Fan Voltage | Current Requirement | Compatible USB Version | Notes |
|---|---|---|---|
| 5V | ≤ 500mA | USB 2.0 | Safe and feasible |
| 5V | ≤ 900mA | USB 3.0 | Better current headroom |
| 12V | ≥ 1000mA | Not compatible | Requires external adapter |
| 24V | ≥ 1000mA | Not compatible | USB can't support such high voltages |
Thus, while it's theoretically possible to run some small 5V fans via USB, higher voltage fans are out of the question without converters or regulators.
Using a USB port to power a DC axial fan is not without risks. Let’s explore a few:
Overcurrent Damage: Drawing more current than the port can handle may trigger port shutdowns or cause permanent damage to the USB controller.
Inconsistent Voltage Supply: Especially on older PCs, voltage fluctuations may affect fan performance and longevity.
Underpowering the Fan: Supplying less voltage or current than required can lead to ineffective cooling and motor strain.
Cable Resistance: USB cables have inherent resistance which can drop voltage further, reducing fan performance.
If you plan to use a USB-powered fan for cooling critical components (like CPUs, GPUs, or industrial circuit boards), this is not recommended unless the fan is specifically designed for USB input.
Despite the risks, USB power for DC axial fans has a few practical applications:
Laptop Cooling Pads: These use 5V fans that draw under 500mA, ideal for USB ports.
Mini Project Enclosures: Raspberry Pi and other SBCs (Single Board Computers) sometimes use tiny 5V axial fans connected via GPIO or USB.
USB Desk Fans: Custom 3D-printed fan enclosures often run on 5V USB fans for convenience.
DIY Air Circulation Projects: Battery packs with USB output are handy for remote sensor units or mini-airflow systems.
Always check the fan specifications carefully before connecting to USB. If the fan draws more than what the USB port can provide, consider external power adapters or step-up converters.
Technically yes, you can use a USB step-up converter to boost 5V to 12V, but this comes at a cost of increased current draw. If your fan draws 12V at 0.5A (6W), the USB port would need to supply at least 1.2A at 5V—beyond what most ports can handle.
A 5V axial fan rated under 400mA is the safest choice for USB-powered applications, especially from USB 2.0 ports.
Yes, USB-C Power Delivery (PD) can deliver 9V, 12V, and even 20V at up to 100W. However, the device and cable must support it. You still need a PD trigger board or converter to step up the voltage appropriately.
Using a USB port to power a DC axial fan can work under the right conditions, especially for 5V low-power fans. However, this approach is not universally recommended. USB ports have strict current limits and voltage caps that do not align well with the needs of higher voltage fans. If your fan is rated for 12V or 24V, or requires more than 0.9A, use a proper power supply or DC adapter to avoid damaging your equipment.
Understanding your fan’s specs—voltage, current, and power rating—is crucial. USB ports offer convenience but also come with limitations. Always double-check compatibility before making a connection.
